Product name |

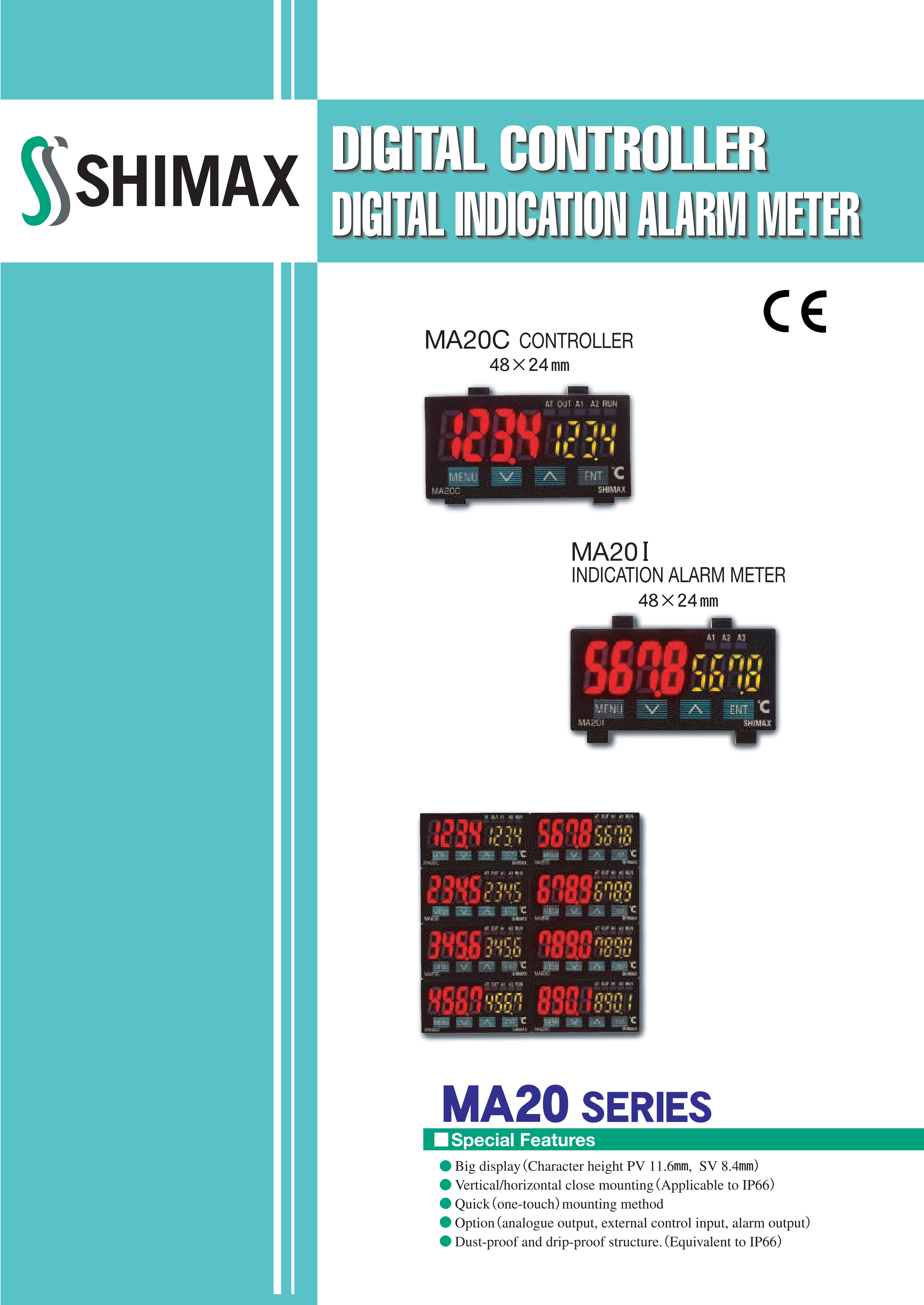

MA20 series digital controllers |

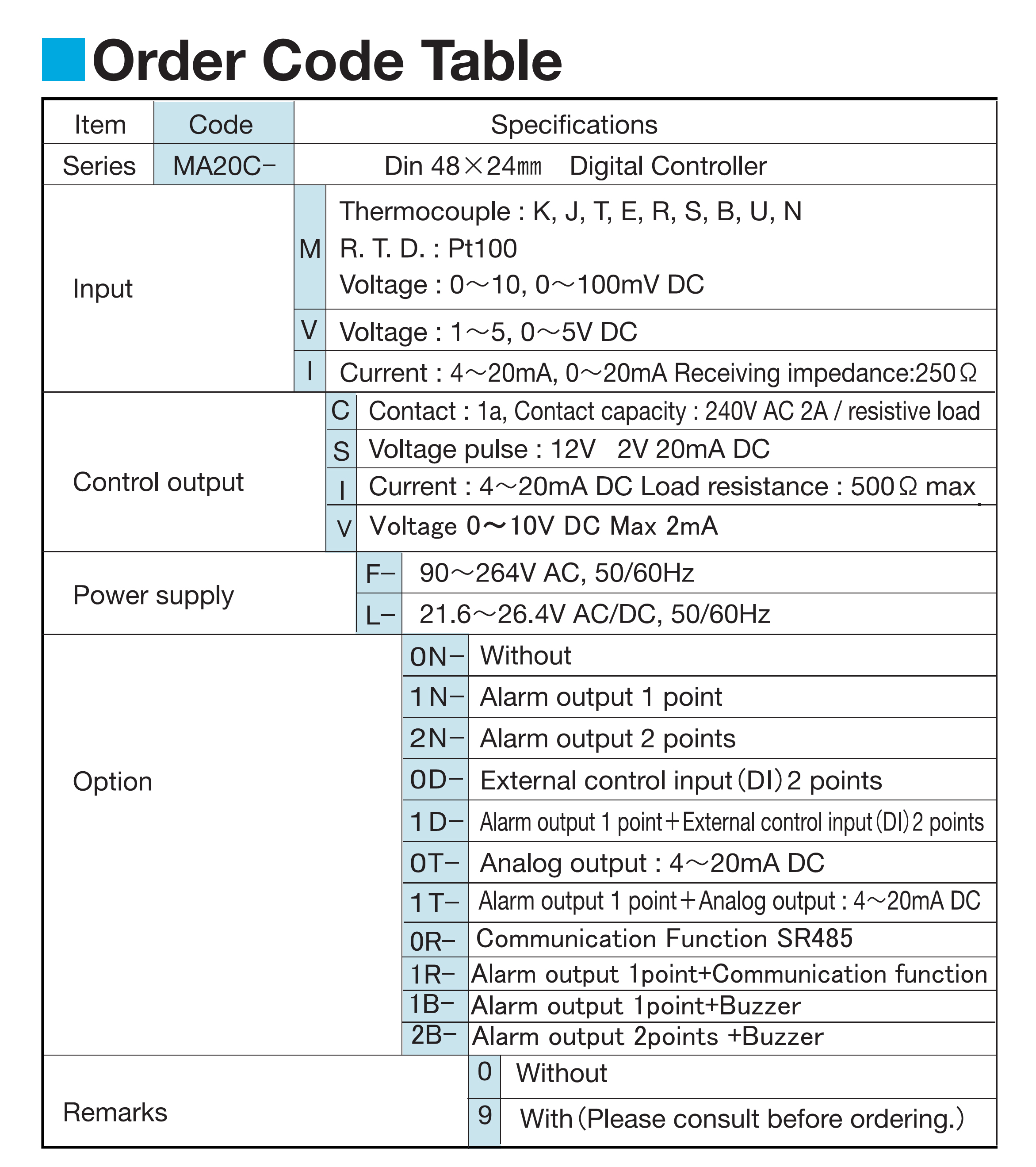

| Product model |
MA20C / MA20I |
|
Power supply |
100-240V ±10% 50/60Hz (21.6～26.4V DC/AC) |
|
Accuracy |
+(0.25%FS+1digit) |
|

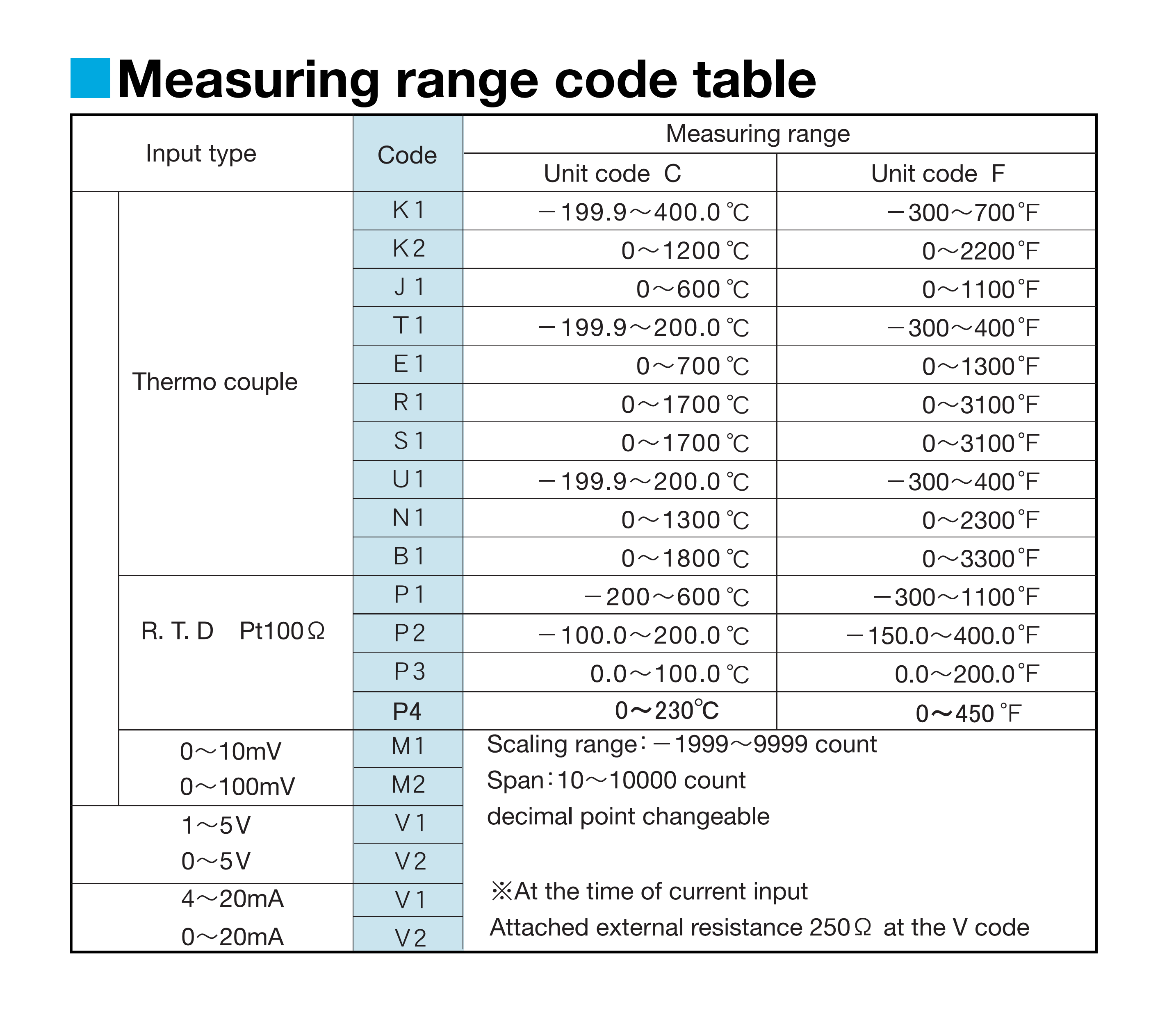

Display range |
-10%-110% of measuring range |
|
Control system |
Automatic tuning PlD control or ON-OFF operation |
|
Sampling Period |
0.25s |
| Input |
Thermocouple、Resistance bulb、Voltage、Current |
|
Control Output |
Contact、Voltage pulse (SSR drive voltage)、Voltage、Current |
|
Use environmental condition |
Temperature :0~50℃ Humidity:Below 90%RH (no dew condensation) |
|
Power consumption |
100V AC :below 4VA 200VAC:below 6VA 240V AC : below 7VA24V AC : below 4VA24V DC : below 3W |
|
Optional feature |
24V power supply Event outpot 2 DI2 |
|
RS485 communication 4-20mA Analog Output(AO) |
